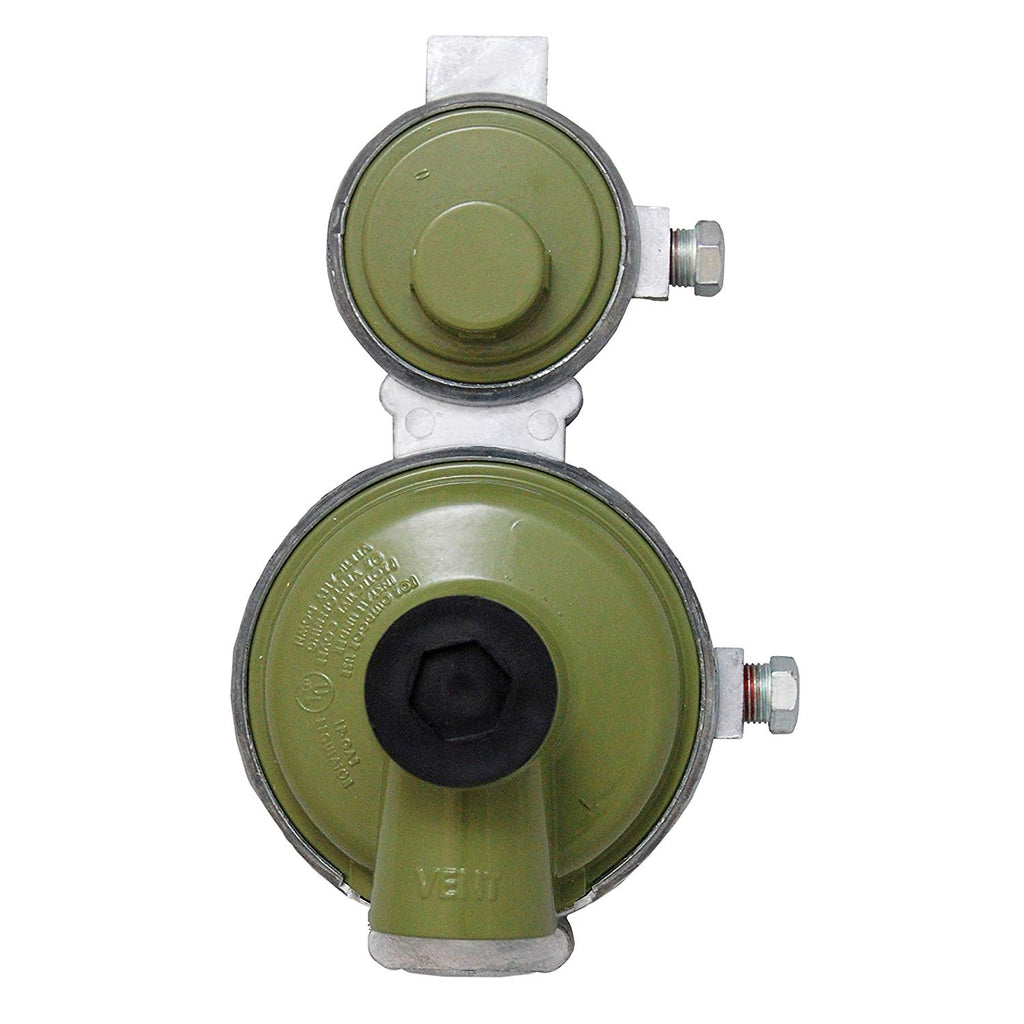

MEC Excela-Flo Two Stage End Vent Regulator

1/4" FNPT x 3/8" FNPT

The MEC two-stage regulator combines both a high pressure first stage and a low pressure second stage regulator into a single unit. Ideally designed for RV applications to ensure a smooth and continuous flow of gas to all applications.

Specifications: Inlet pressure: 30 PSI 100 PSI Outlet Pressure: 9" W.C. Capacity and BTU/HR: 175,000 195,000

• Inlet Size: 1/4 Inch
• Inlet Attachment Type: Female Threads
• Outlet Size: 3/8 Inch
• Outlet Attachment Type: Female Threads
• Installation Type: Vertical
• Outlet Pressure: 11 Inch WC
• Number Of Stages: 2
• BTU Level: 175000 BTU Per Hour
• Material: Zinc
• With Shut Off Valve: No
• With Hose: No
• RV Approved: Yes

Features & Benefits

• Approved For Use in Nearly All Portable Applications and Outdoor Cooking Appliances Utilizing Low Pressure
• Feature All Zinc Body Construction, High and Low 1/8 Inch NPT Pressure Tap Ports, An Integral Second Stage Drip Lip Vent and Optional Standard Or 90 Degree Vent Locations
• Meet UL, RVIA And NFPA Requirements
• High And Low 1/8 Inch NPT Pressure Tap Ports, An Integral Drip Lip Vent and Optional 90 Degree Vent Location
