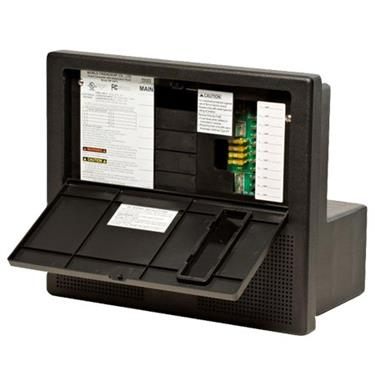

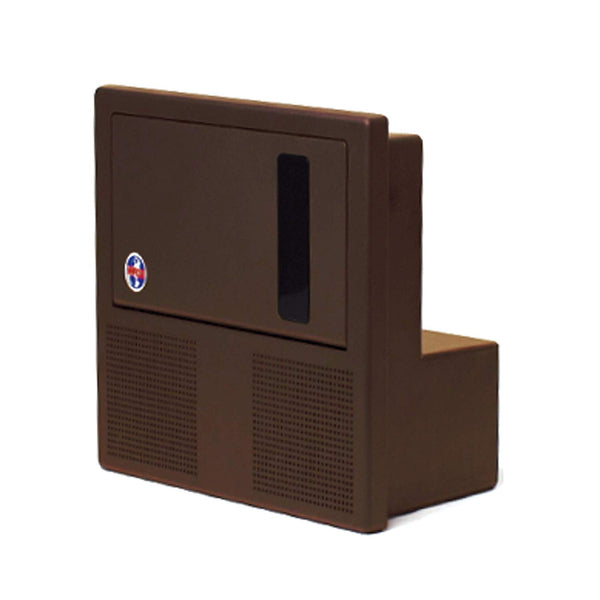

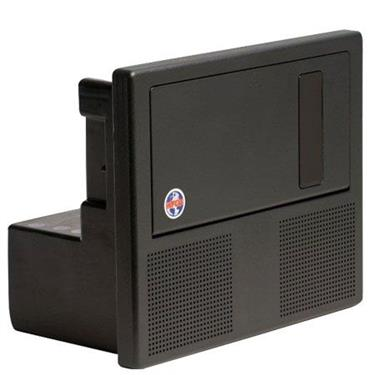

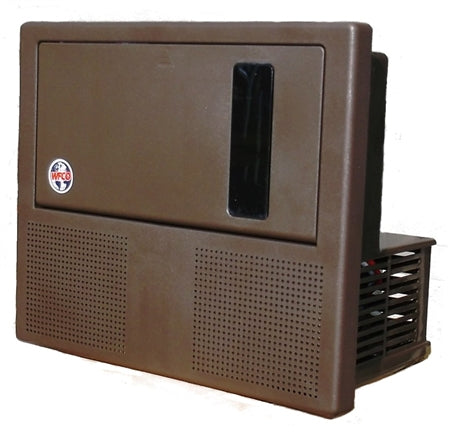

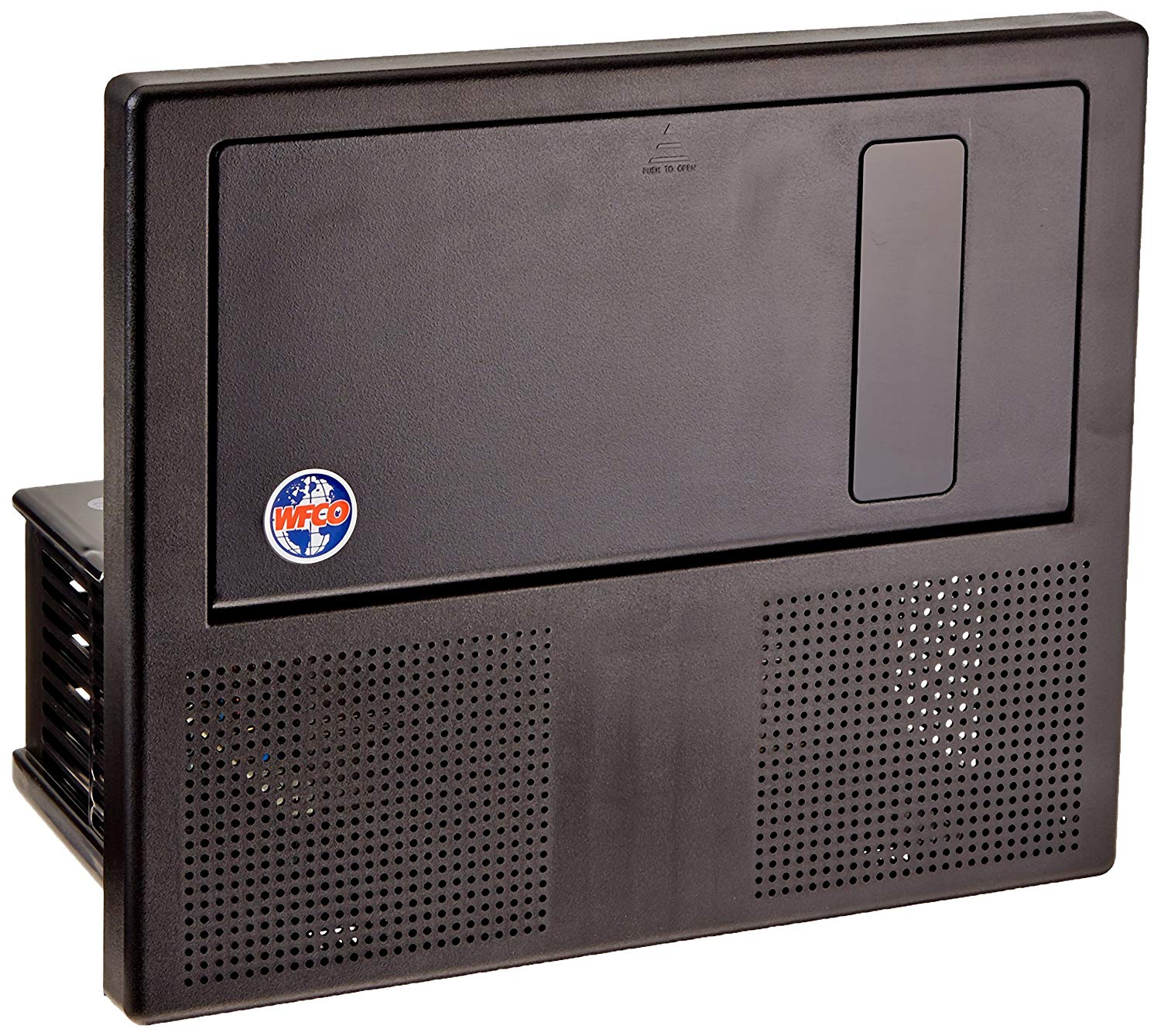

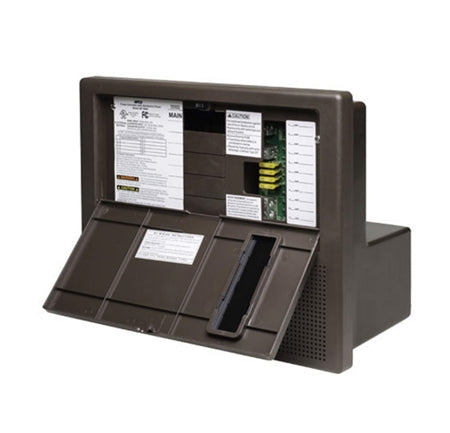

WFCO 8900 Series Converter Battery Charger Power Center - Various Amperage

8900 series power center converter/charger and AC-DC distribution

The WF-8900 Series has revolutionized RV power centers with its lighter weight, decorative doors and superior features. This series provides a clean, constant 13.6 volts DC nominal output range for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery, with output voltage modes of 13.2 volts DC range "float" mode, 13.6 volts DC range "absorption" mode, and a 14.4 volts DC range "bulk" mode.

The 8900 Series is designed to offer quite operation as the cooling fan runs only when needed. FCC Class B compliance for every power center model helps eliminate interference with televisions, radios or other signals. Electronic current limiting automatically shuts down power during overload or short-circuit conditions, protecting the life of your power center and electrical system. WF-8900 Series models provide AC/DC distribution with innovative features. They can accommodate a 30-amp main AC circuit breaker and up to five branch circuits. Eleven branch DC circuits are available with LED bulbs for each DC circuit, to illuminate and identify open circuits. For 8900 Series.

Installation Manual
